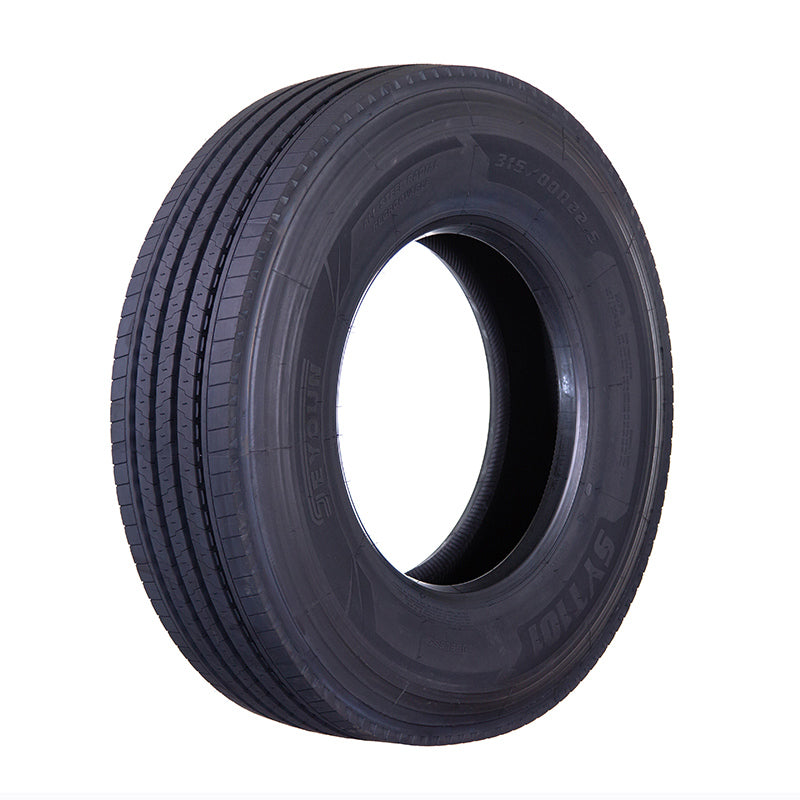

Brand: Seyoun

Model: SYT101

Size: 315/80R22.5

Vehicle Type: Heavy-Duty Commercial Semi-Trucks, Dump Trucks & Logistics Fleets

Position: Steer / All-Position / Mixed Service

Load Range: L (20 Ply Rating / 20PR)

Load Speed Index: 156/153K or 156/153F

Tread Depth: 21.5/32" to 24/32" (Deep block and rib profile optimized for multi-surface longevity)

Max Load Single: 8,820 lbs (4,000 kg)

Max Pressure Single: 120 to 130 PSI (Depending on application configurations)

Max Load Dual: 8,045 lbs (3,650 kg per tire in a dual setup)

Max Pressure Dual: 120 to 130 PSI

Approved Rim Width: 9.00 inches

Outside Diameter: 44.2 to 44.7 inches (1,124 mm - 1,136 mm nominal)

Section Width: 12.6 inches (320 mm)

Weight: 176 to 187 lbs (79.6 kg - 84.8 kg approx.)

Casing Type: Heavy-duty all-steel radial cord structure
